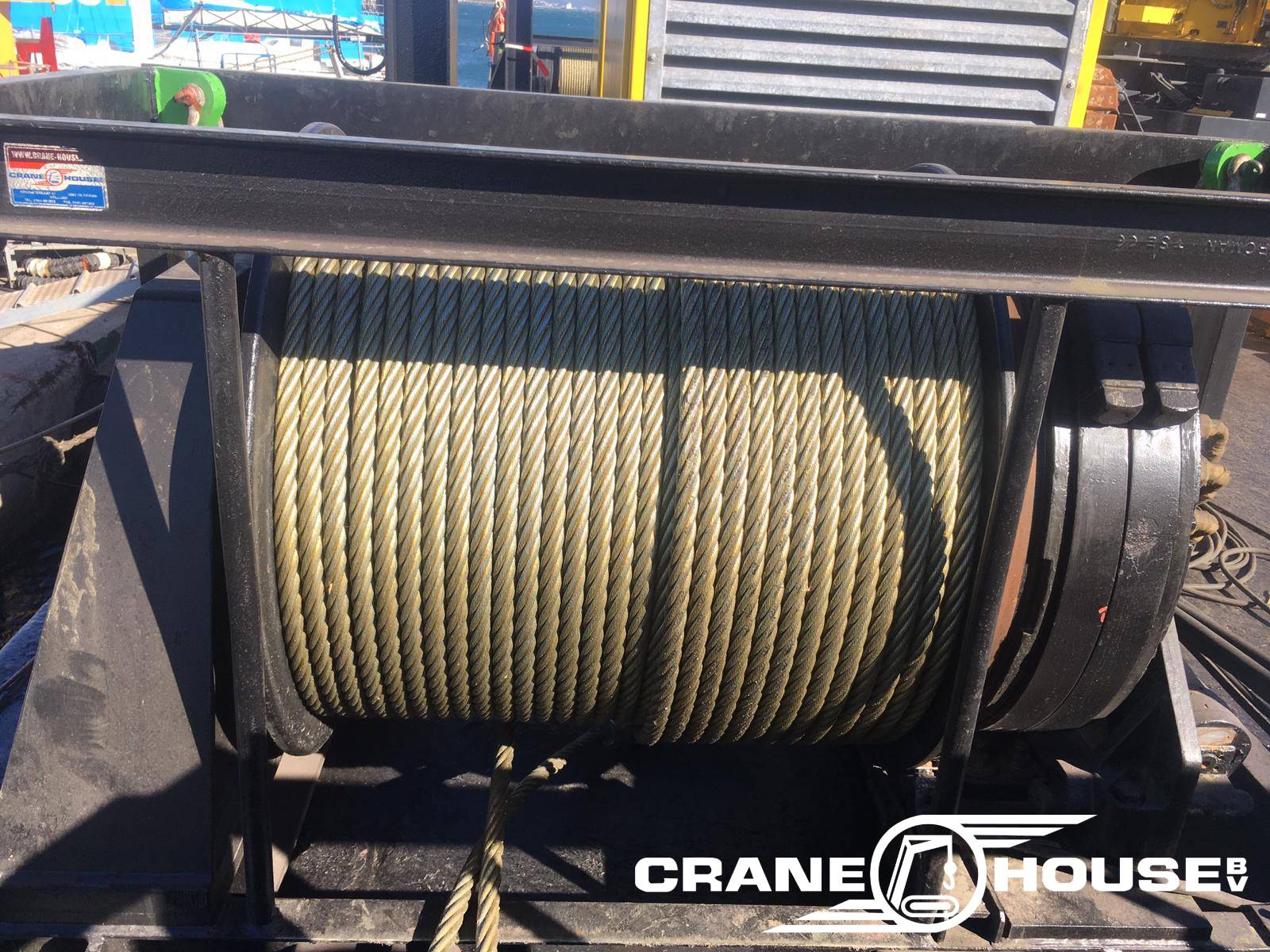

Constant tension hydraulic single drum mooring winch

Pulling force at first layer: 25.0 ton (constant tension)

Holding force at first layer: 33.0 ton

Drum capacity: 500 mtr – 30 mm steel wire

Speed at first layer: 10 mtr / min

Brake: hydraulic by joystick

Clutch: hydraulic by joystick

Weight excl. wire: 2800 kg

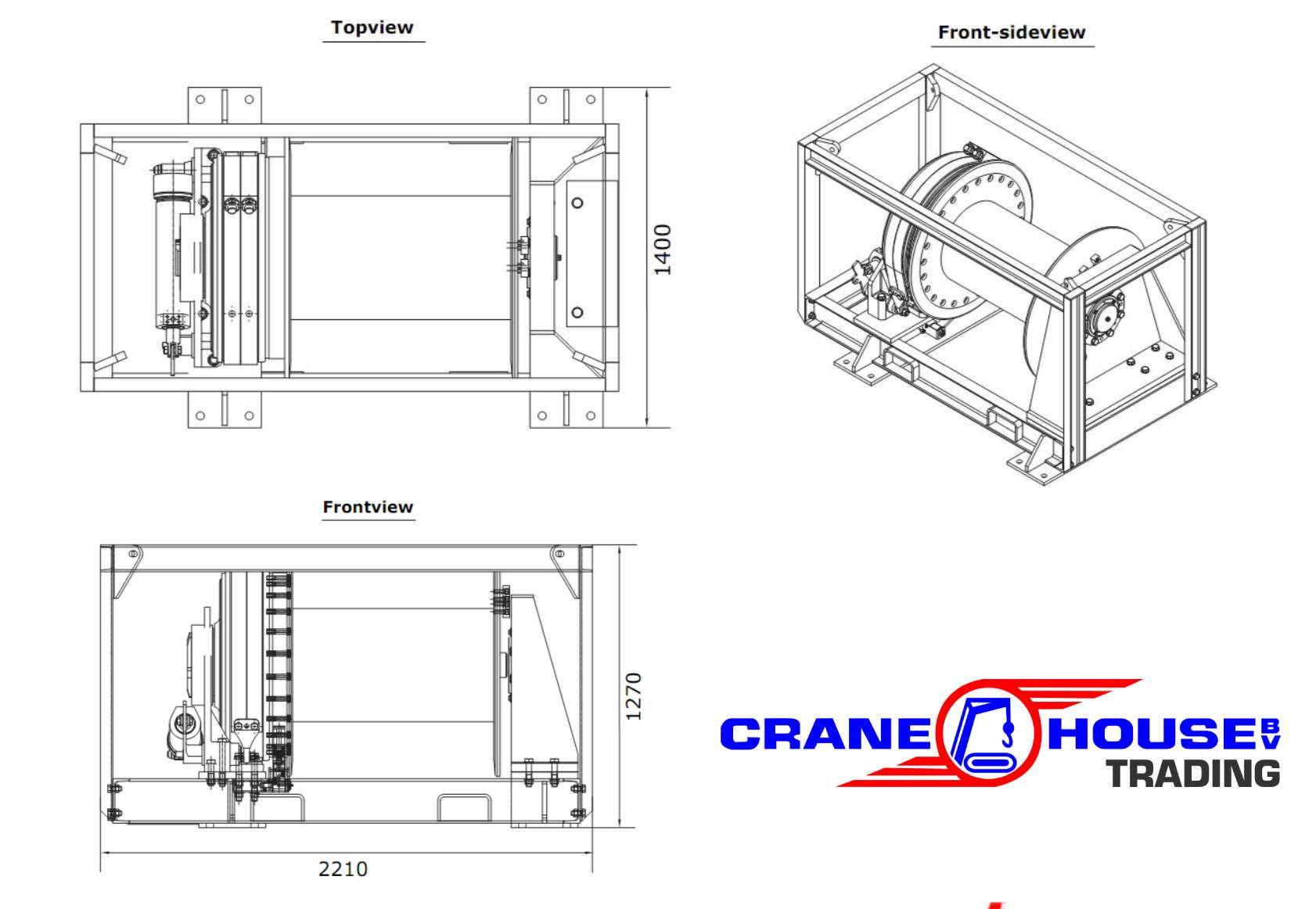

Transport dimensions: 2210 x 1400 x 1270 mm

Hydraulic power unit: diesel driven 121Kw

Hydraulic power unit weight: 4980 kg

This winch only operates in combination with the hydraulic power unit 121 kW. See more…


Please contact us for price or send us your offer.
